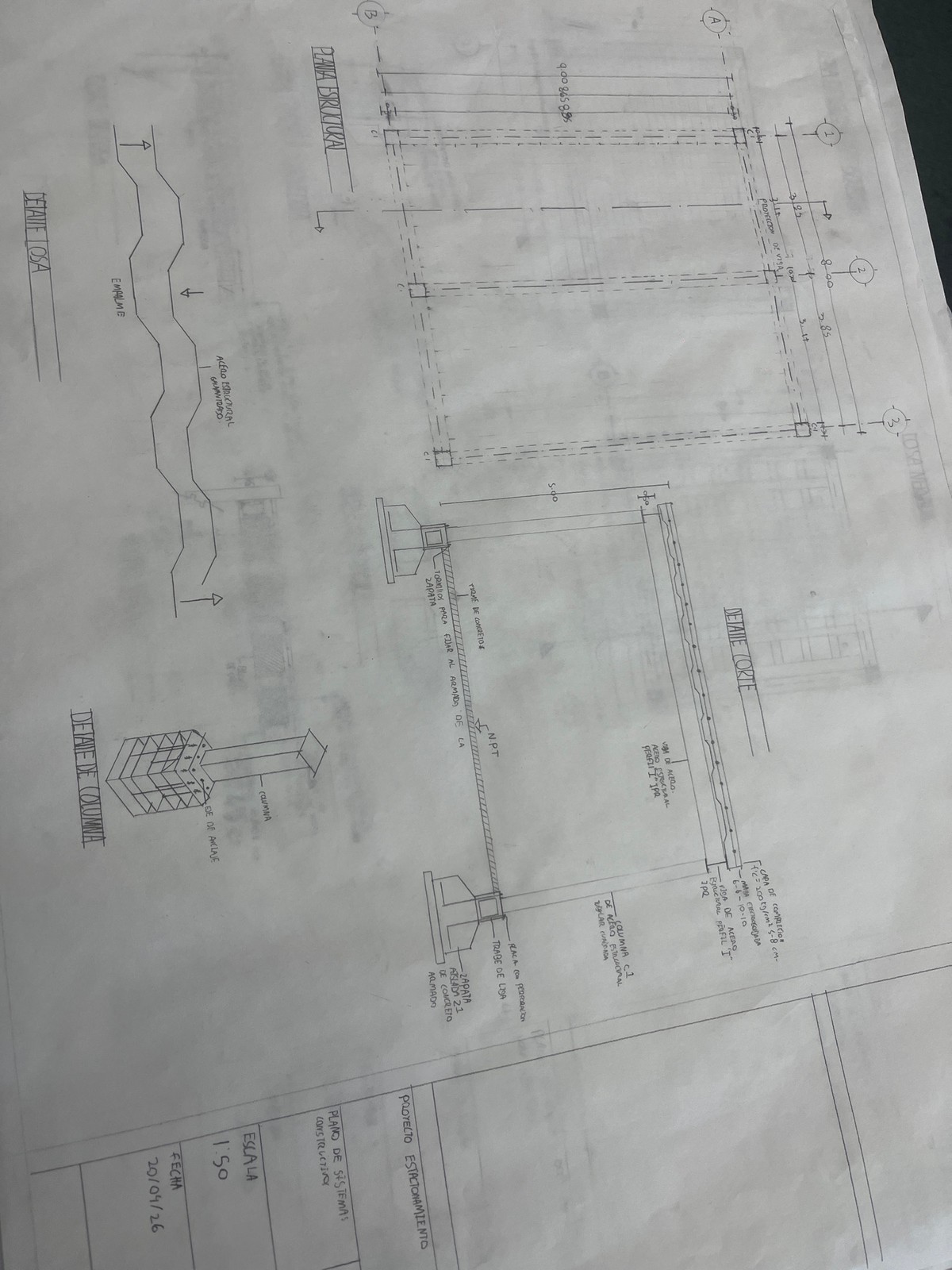

An architectural and structural drawing, rendered in a hand-drawn style on white paper, details aspects of a parking project. The drawing is composed of several sections: a structural plan, a section detail, a slab detail, and a column detail. The "PLANO ESTRUCTURAL" (Structural Plan) at the top left shows a grid layout with axes labeled A, B and 1, 2, 3. Dimensions of 9.00 and 8.00 meters are indicated, along with smaller sectional measurements like 3.85, 3.14, 1.01, 3.17, and 3.25 meters. It includes notations for "PROYECCIÓN DE VIGA" (Beam Projection) and "C1" (likely referring to a column). The central "DETALLE CORTE" (Section Detail) illustrates a vertical cross-section of the structure. It specifies a "VIDA DE ACERO. ACERO ESTRUCTURAL PERFIL I" IPR" (Steel Beam. Structural Steel I-beam profile IPR) and a "COLUMNA C1 DE ACERO ESTRUCTURAL TUBULAR CUADRADA" (Column C1 of square tubular structural steel). Details for a "CAPA DE COMPRESIÓN" (Compression Layer) are provided, including concrete strength (f'c=200 kg/cm²), thickness (5-8 cm), and "MALLA ELECTROSOLDADA 6-6-10-10" (welded mesh). The foundation includes "PLACA CON PERFORACIÓN" (Perforated Plate), "TRABE DE LIGA" (Tie Beam), "TORNILLOS PARA FIJAR AL ARMADA DE LA ZAPATA" (Screws to fix the reinforcement of the footing), and a "ZAPATA AISLADA 2.1 DE CONCRETO ARMADO" (Isolated Footing 2.1 of Reinforced Concrete). The drawing also marks "N.P.T" (Finished Floor Level) and "FIRME DE CONCRETO" (Concrete slab). At the bottom left, "DETALLE LOSA" (Slab Detail) shows a corrugated profile with an "EMPALME" (Splice/Joint) and labels "ACERO ESTRUCTURAL GALVANIZADO" (Galvanized Structural Steel). The "DETALLE DE COLUMNA" (Column Detail) at the bottom right provides an isometric view of a column base, indicating "COLUMNA" (Column) and "EJE DE ANCLAJE" (Anchoring Axis). The title block on the right confirms it is a "PROYECTO ESTACIONAMIENTO" (Parking Project), a "PLANO DE SISTEMAS CONSTRUCTIVOS" (Plan of Constructive Systems) with a "ESCALA 1:50" (Scale 1:50) and a "FECHA 20/04/26" (Date 20/04/26). The overall impression is a technical drawing, likely a preliminary or conceptual design, detailing structural components in Spanish. in Mexico City, Mexico
